XLT Series - 565 to 1015 lbs

Overview

Product Description

XLT Series - 565 to 1015 lbs

Linear Actuators - 25 to 2,000 lb.

VOLTAGE: 12 or 24 VDC
SCREW TYPE: Ball Screw
STROKES: 2 to 11.8 in (50 to 300 mm)
TEMPERATURE RANGE: -13ºF to 150ºF (-25ºC to 65ºC)
ENVIRONMENTAL RATING: IP66S protection standard

FEATURES & BENEFITS

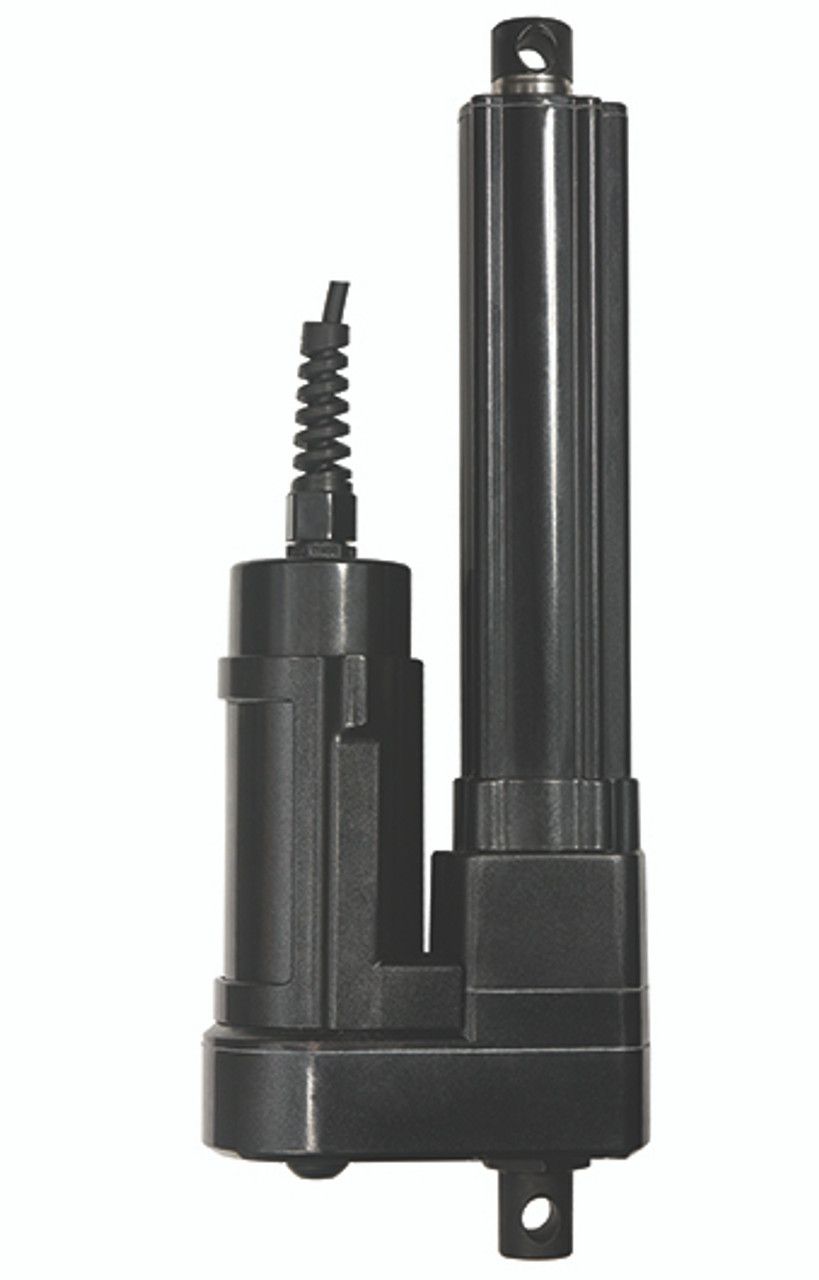

XLT Series - 565 to 1015 lb Linear Actuator

SAFETY

Internal limit switches safely stop operation at fully retracted and fully extended positions

STRENGTH

Improved strength from zinc die cast housing

CORROSION RESISTANCE

Aluminum outer tube

ROTATION PREVENTION

No restraining torque required due to keyed translating tube

SMOOTH OPERATION

Polished aluminum translating tube

ENVIRONMENTAL PROTECTION

IP66 protection enables operation in rugged outdoor environments

XLT Series 565 - 1015 lb Ball Screw Models Product Specifications
Product Number	Part Number	Rated Loads	Stroke Length		Retracted Length		Voltage	Current Draw*	Speed*		Limit Switch	Duty Cycle*
Prod. #	Part #	(lbs) N	In	mm	In	mm	VDC	Amp	in/s	mm/s	Yes/No	*
XLT500-1-50	192025418	(565) 2513	1.97	50	9.88	251	12	25.0	1.89	48	Yes	22%
XLT500-2-50	192025436	(565) 2513	1.97	50	9.88	251	24	12.2	1.89	48	Yes	22%
XLT500-1-100	192025419	(565) 2513	3.94	100	11.85	301	12	25.0	1.89	48	Yes	22%
XLT500-2-100	192025437	(565) 2513	3.94	100	11.85	301	24	12.2	1.89	48	Yes	22%
XLT500-1-150	192025420	(565) 2513	5.91	150	13.82	351	12	25.0	1.89	48	Yes	22%
XLT500-2-150	192025438	(565) 2513	5.91	150	13.82	351	24	12.2	1.89	48	Yes	22%
XLT500-1-200	192025421	(565) 2513	7.87	200	15.79	401	12	25.0	1.89	48	Yes	22%
XLT500-2-200	192025439	(565) 2513	7.87	200	15.79	401	24	12.2	1.89	48	Yes	22%
XLT500-1-250	192025422	(565) 2513	9.84	250	17.76	451	12	25.0	1.89	48	Yes	22%
XLT500-2-250	192025440	(565) 2513	9.84	250	17.76	451	24	12.2	1.89	48	Yes	22%
XLT500-1-300	192025423	(565) 2513	11.81	300	19.72	501	12	25.0	1.89	48	Yes	22%
XLT500-2-300	192025441	(565) 2513	11.81	300	19.72	501	24	12.2	1.89	48	Yes	22%
XLT700-1-50	192025424	(790) 3514	1.97	50	9.88	251	12	18.0	1.00	25	Yes	20%
XLT700-2-50	192025442	(790) 3514	1.97	50	9.88	251	24	9.0	1.00	25	Yes	20%
XLT700-1-100	192025425	(790) 3514	3.94	100	11.85	301	12	18.0	1.00	25	Yes	20%
XLT700-2-100	192025443	(790) 3514	3.94	100	11.85	301	24	9.0	1.00	25	Yes	20%
XLT700-1-150	192025426	(790) 3514	5.91	150	13.82	351	12	18.0	1.00	25	Yes	20%
XLT700-2-150	192025444	(790) 3514	5.91	150	13.82	351	24	9.0	1.00	25	Yes	20%
XLT700-1-200	192025427	(790) 3514	7.87	200	15.79	401	12	18.0	1.00	25	Yes	20%
XLT700-2-200	192025445	(790) 3514	7.87	200	15.79	401	24	9.0	1.00	25	Yes	20%
XLT700-1-250	192025428	(790) 3514	9.84	250	17.76	451	12	18.0	1.00	25	Yes	20%
XLT700-2-250	192025446	(790) 3514	9.84	250	17.76	451	24	9.0	1.00	25	Yes	20%
XLT700-1-300	192025429	(790) 3514	11.81	300	19.72	501	12	18.0	1.00	25	Yes	20%
XLT700-2-300	192025447	(790) 3514	11.81	300	19.72	501	24	9.0	1.00	25	Yes	20%
XLT1000-1-50	192025430	(1015) 4515	1.97	50	300	300	12	13.0	0.55	14	Yes	20%
XLT1000-2-50	192025448	(1015) 4515	1.97	50	300	300	24	6.5	0.55	14	Yes	20%
XLT1000-1-100	192025431	(1015) 4515	3.94	100	300	300	12	13.0	0.55	14	Yes	20%
XLT1000-2-100	192025449	(1015) 4515	3.94	100	300	300	24	6.5	0.55	14	Yes	20%
XLT1000-1-150	192025432	(1015) 4515	5.91	150	300	300	12	13.0	0.55	14	Yes	20%
XLT1000-2-150	192025450	(1015) 4515	5.91	150	300	300	24	6.5	0.55	14	Yes	20%
XLT1000-1-200	192025433	(1015) 4515	7.87	200	300	300	12	13.0	0.55	14	Yes	20%
XLT1000-2-200	192025451	(1015) 4515	7.87	200	300	300	24	6.5	0.55	14	Yes	20%
XLT1000-1-250	192025434	(1015) 4515	9.84	250	300	300	12	13.0	0.55	14	Yes	20%
XLT1000-2-250	192025452	(1015) 4515	9.84	250	300	300	24	6.5	0.55	14	Yes	20%
XLT1000-1-300	192025435	(1015) 4515	11.81	300	300	300	12	13.0	0.55	14	Yes	20%
XLT1000-2-300	192025453	(1015) 4515	11.81	300	300	300	24	6.5	0.55	14	Yes	20%
* At Rated Load

XLT Series - 565 to 1015 lbs

Product Description

XLT Series - 565 to 1015 lbs

Linear Actuators - 25 to 2,000 lb.

SAFETY

STRENGTH

CORROSION RESISTANCE

ROTATION PREVENTION

SMOOTH OPERATION

ENVIRONMENTAL PROTECTION

OPTIONS:

XLT Series 565 - 1015 lb Ball Screw Models Product Specifications

XLT Series Dimensions

XLT Series Static Load Performance Chart
