TMD02 Series - 250 lbs

Overview

Product Description

TMD02 Series - 250 lbs

Linear Actuators - 25 to 2,000 lb.

VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
TEMPERATURE RANGE: 25F to 120F (-4C to 50C)
ENVIRONMENTAL RATING: IP50 protection standard

FEATURES & BENEFITS

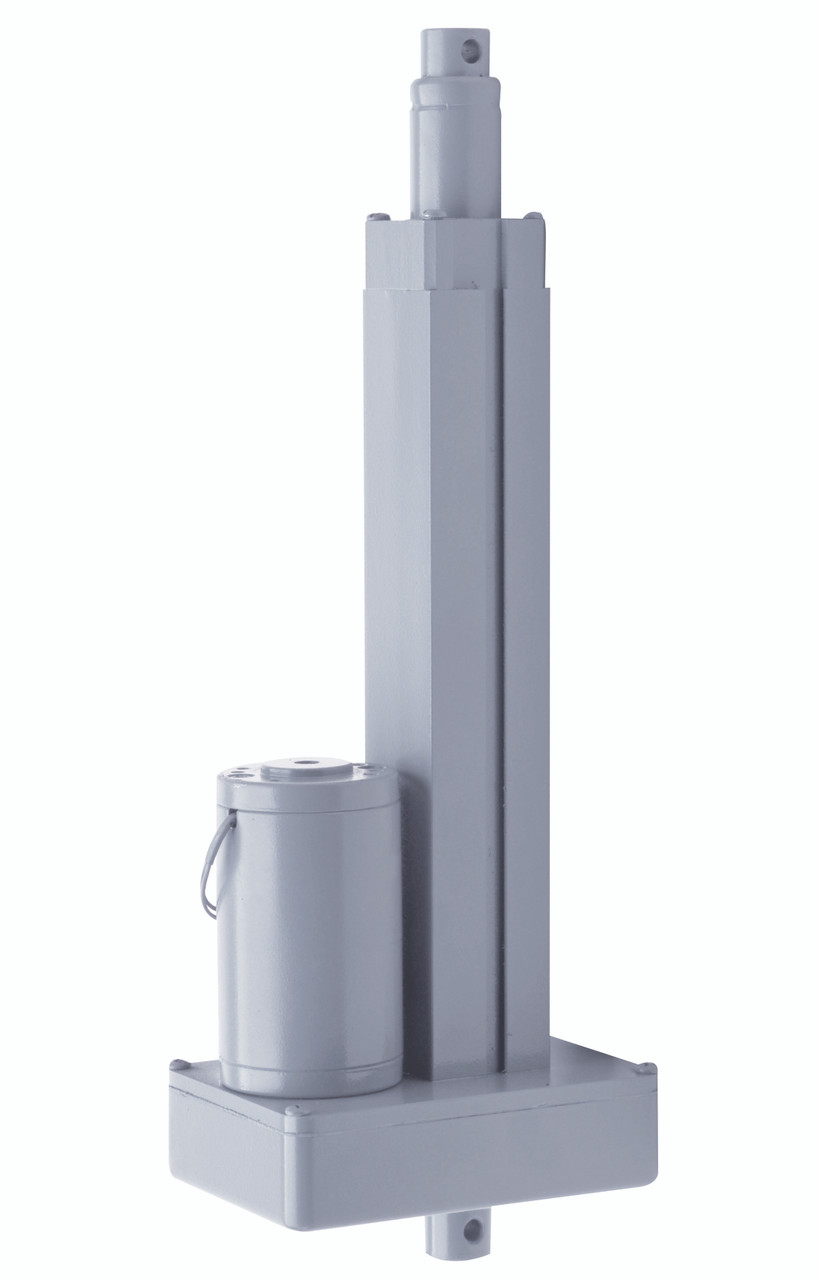

TMD02 Series - 250 lb Linear Actuator

Compact design

Ideal for applications with light loads and limited space

Quiet Operation

Belt drive for quiet operation

Corrosion Resistant

Aluminum housing and outer tube, stainless steel translating tube

No Restraining Torque

Keyed translating tube eliminates the need for restraining torque

Easy Integration

Terminal strip for easy limit switch integration

OPTIONS:

Adjustable limit switch for safe and repeatable positioning
Pulse generator for precise positioning feedback

TMD02 Series Product Specifications
Part Number	Rated Loads	Stroke Length		Retracted Length		Voltage	Current Draw*	Lifting Speed*		Limit Switch	Duty Cycle*
#	(lbs) N	in	mm	in	mm	VDC	Amp	in/s	mm/s	Yes/No	%
TMD02-1406-2	(250) 1112	2	50	7	177	12 VDC	7	0.4	10	No	25%
TMD02-1406-4	(250) 1112	4	101	9	228	12 VDC	7	0.4	10	No	25%
TMD02-1406-6	(250) 1112	6	152	11	279	12 VDC	7	0.4	10	No	25%
TMD02-1406-8	(250) 1112	8	203	13	330	12 VDC	7	0.4	10	No	25%
TMD02-1406-10	(250) 1112	10	254	15	381	12 VDC	7	0.4	10	No	25%
TMD02-1406-12	(250) 1112	12	304	17	431	12 VDC	7	0.4	10	No	25%
TMD02-1906-2	(250) 1112	2	50	7	177	12 VDC	7	0.4	10	Yes	25%
TMD02-1906-4	(250) 1112	4	101	9	228	12 VDC	7	0.4	10	Yes	25%
TMD02-1906-6	(250) 1112	6	152	11	279	12 VDC	7	0.4	10	Yes	25%
TMD02-1906-8	(250) 1112	8	203	13	330	12 VDC	7	0.4	10	Yes	25%
TMD02-1906-10	(250) 1112	10	254	15	381	12 VDC	7	0.4	10	Yes	25%
TMD02-1906-12	(250) 1112	12	304	17	431	12 VDC	7	0.4	10	Yes	25%
TMD02-2406-2	(250) 1112	2	50	7	177	12 VDC	4.5	0.75	19	No	25%
TMD02-2406-4	(250) 1112	4	101	9	228	12 VDC	4.5	0.75	19	No	25%
TMD02-2406-6	(250) 1112	6	152	11	279	12 VDC	4.5	0.75	19	No	25%
TMD02-2406-8	(250) 1112	8	203	13	330	12 VDC	4.5	0.75	19	No	25%
TMD02-2406-10	(250) 1112	10	254	15	381	12 VDC	4.5	0.75	19	No	25%
TMD02-2406-12	(250) 1112	12	304	17	431	12 VDC	4.5	0.75	19	No	25%
TMD02-2906-2	(250) 1112	2	50	7	177	12 VDC	4.5	0.75	19	Yes	25%
TMD02-2906-4	(250) 1112	4	101	9	228	12 VDC	4.5	0.75	19	Yes	25%
TMD02-2906-6	(250) 1112	6	152	11	279	12 VDC	4.5	0.75	19	Yes	25%
TMD02-2906-8	(250) 1112	8	203	13	330	12 VDC	4.5	0.75	19	Yes	25%
TMD02-2906-10	(250) 1112	10	254	15	381	12 VDC	4.5	0.75	19	Yes	25%
TMD02-2906-12	(250) 1112	12	304	17	431	12 VDC	4.5	0.75	19	Yes	25%
Note: For pulse generator models, use PTD model number prefix instead of TMD * At Rated Load
