Product Description

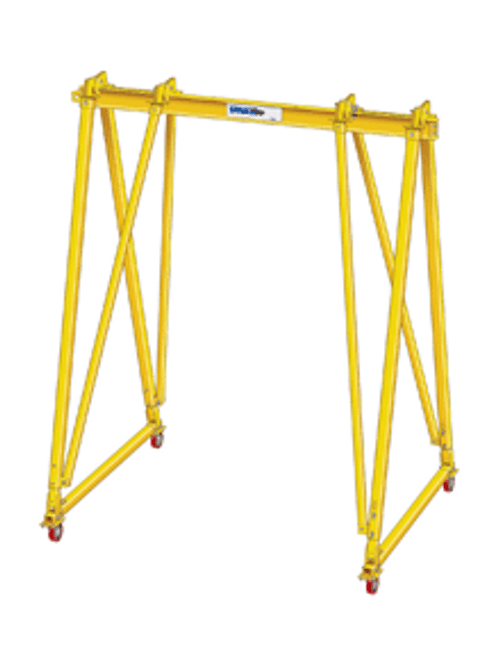

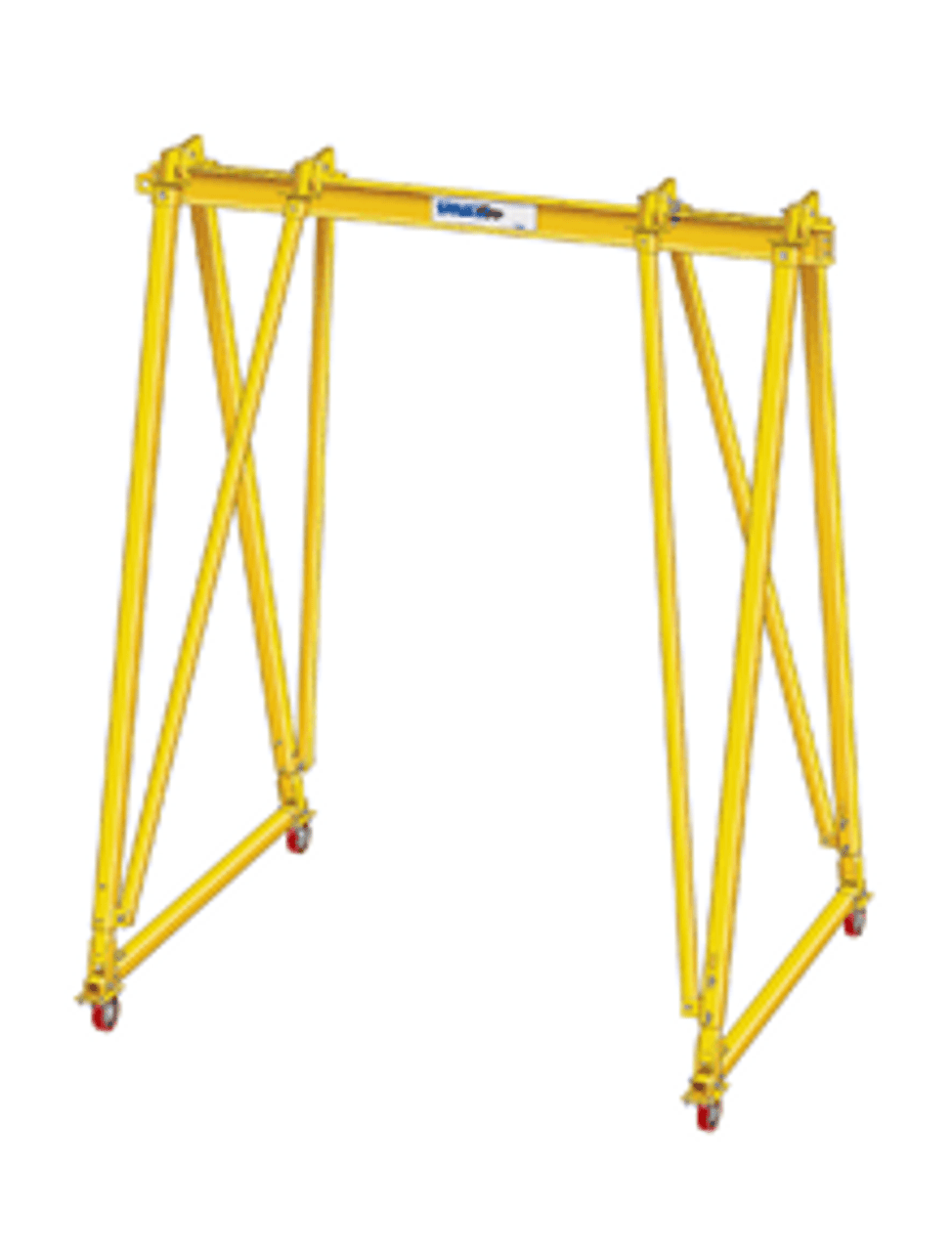

T-Series Gantry Cranes
Overview
Spanco T-Series Gantry Cranes offer three-way adjustability for span, height, and tread.
Their adjustment flexibility allows use on multi-level floors, as well as passage through doorways, aisles, and under mezzanines or other overhead obstacles.
T-Series Gantry Cranes come in two models:
| Makes | Capacities | Overall Height | Span Length |
| All Steel | up to 10 tons | up to 24′ 3″ | up to 40′ |
| Aluminum I-beam | up to 3 tons | up to 22′ 0″ | up to 15′ |
*Longer custom spans available
FEATURES OF SPANCO T-SERIES GANTRY CRANES
- Superior Stability: Engineered design leaves I-beam free to pivot as it self-centers over the load. The “true A-frame” design helps to maintain greater stability, virtually eliminating the swaying motion common to other 3-way adjustable gantry designs. Main legs, brace legs, and caster frames are made of heavy-gauge, square tubing with zinc-plated hardware.
- Adjustable Span: Exclusive Spanloc™ design securely holds the I-beam during adjustments and when set
- Cantilever Options: Deliver materials through end of gantry; cantilever up to 25 percent of the rated capacity (4-foot max.) using a counterweight
- Adjustable Height: Adjust in 6-inch intervals using push/pull pins on main legs
- Adjustable Tread: A cable assembly is bolted inside the caster frame tubes to prevent overspreading
- Heavy-Duty Casters: Four position, swivel-lock casters with moldon polyurethane wheels protect floors from damage
Options and Components
- Cart Kits: Attach to caster frames to transform the disassembled gantry into a transportable handcart
- Detachable Height-Adjustment Kits: Convenient for frequent height adjustments, they eliminate the need for an overhead hoist or forklift truck. Kits consist of two units; order two kits to eliminate transfer of kits from end to end. Use under no-load conditions only.
- Alternative Caster Styles and Wheel Brakes: Available upon request
