Product Description

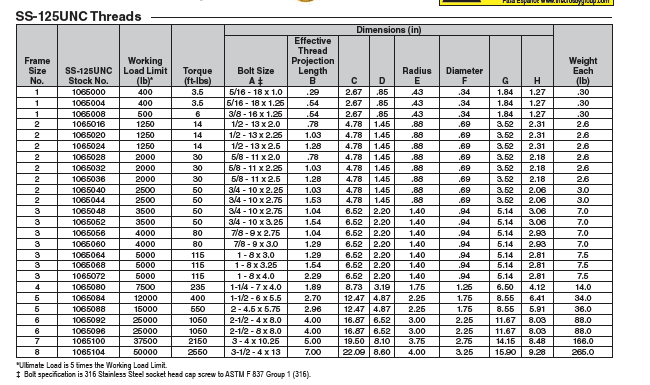

SS-125UNC Threads
• All components are 316 stainless steel, except bolt retainers, which are made from 15-7 PH (UNS 15700) magnetic stainless steel.
• Available in capacities from 400 lbs. to 50,000 lbs.
• Rated at 100 percent at 90 degree angle.
• Each product has a Product Identification Code (PIC) for material traceabilit , along with the Working Load Limit and the name Crosby
or “CG” stamped into it.
• Individually proof tested to 2 times the Working Load Limit with certification
• Fatigue Rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
• Washer is color coded for easy identification (Red - UNC thread)
• Bolt specification is 316 Stainless Steel socket head cap screw to ASTM F 837M (316).
• All threads listed are Metric UNC.
• BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
• NOTE: For Special Applications, see page 457.
• Frame 2 and larger are RFID EQUIPPED.
