Product Description

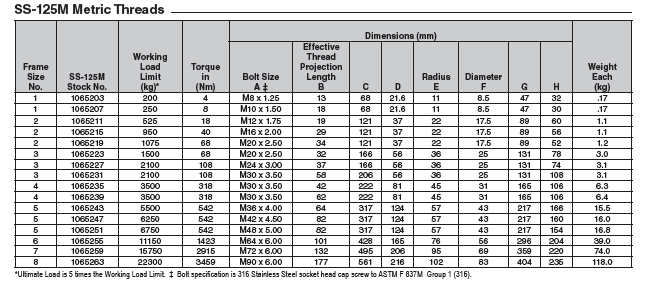

SS-125M Metric Threads
• All components are 316 stainless steel, except bolt retainers, which are made from 15-7 PH (UNS 15700) magnetic stainless steel.
• Available in capacities from 200 kg to 22.300 kg.
• Rated at 100 percent at 90 degree angle.
• Each product has a Product Identification Code (PIC) for material traceabilit , along with the Working Load Limit and the name Crosby or
“CG” stamped into it.
• Individually proof tested to 2 times the Working Load Limit with certification
• Fatigue Rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
• Washer is color coded for easy identification (Silver - Metric thread)
• Bolt specification is 316 Stainless Steel socket head cap screw to ASTM F 837M (316).
• All threads listed are Metric (ASME/ANSI B18.3.1M).
• BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
