Product Description

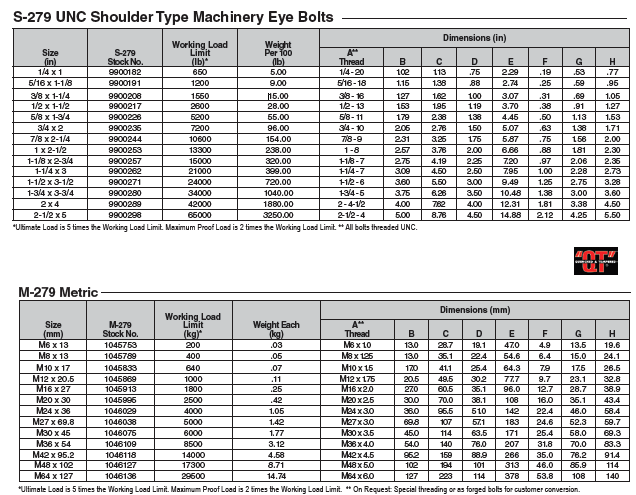

S-279 UNC Shoulder Type Machinery Eye Bolts
Forged Steel - Quenched & Tempered.
• Working Load Limits shown are for in-line pull. For angle loading, see
page 200.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Recommended for in-line pull.
• S-279 threaded UNC.
• M-279 metric threaded.
• Meets or exceeds all requirements of ASME B30.26 including
identification, ductilit , design factor, proof load and temperature
requirements. Importantly, these bolts meet other critical performance
requirements including fatigue life, impact properties and material
traceability, not addressed by ASME B30.26.
