Product Description

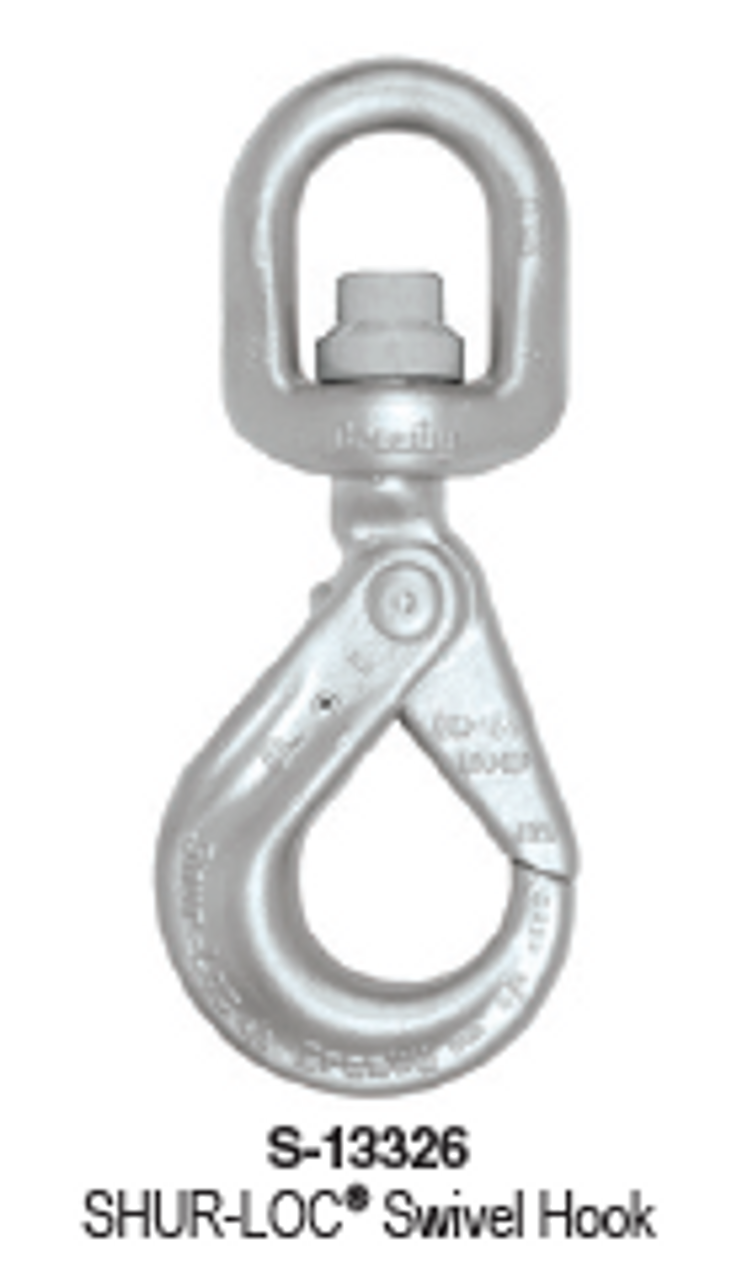

S-13326 SHUR-LOC® Swivel Hooks
• Forged Alloy Steel - Quenched and Tempered.
• Individually Proof Tested at 2-1/2 times the Working Load Limit
with certification
• Recessed trigger design is flush with the hook bod , protecting the trigger from
potential damage.
• Easy to operate with enlarged thumb access.
• Positive Lock Latch is Self-Locking when hook is loaded.
• Rated for both Wire Rope, (reference page 117 for Wire Rope), and use with Grade
80/100 Chain.
• G-414 Heavy Thimble should be used with wire rope slings.
• Trigger Repair Kit available (S-4316). Consists of spring, roll pin and trigger.
• S-13326 Swivel Hook utilizes anti-friction bearing design which allows hook to rotate
freely under load.
• Fatigue rated.
• The SHUR-LOC® hook, if properly installed and locked, can be used for personnel
lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and
1926.1501(g)(4)(iv)(B).
• “Look for the Platinum Color – Crosby Grade 100 Alloy Products.”
• U.S. Patent 5,381,650 and foreign equivalents. Use in corrosive environment requires
shank and nut inspection in accordance with ASME B30.10-1.10.4(b)(5)(c)2009.
