ProStar VS

Overview

Product Description

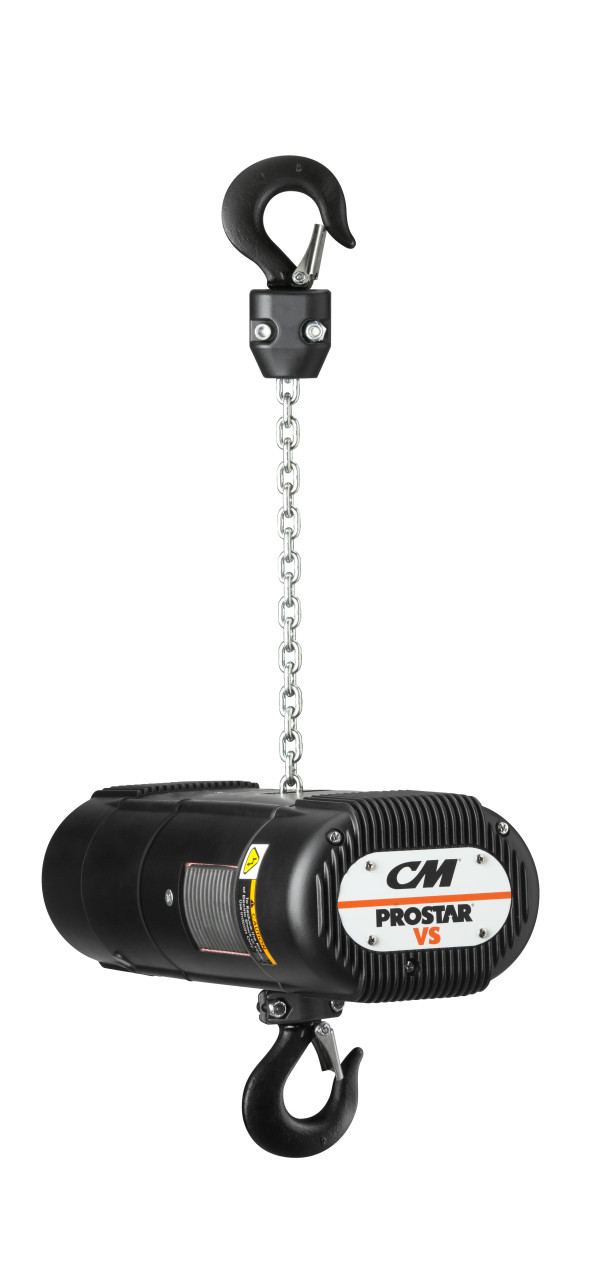

ProStar VS

The Prostar VS provides precision control, fast lifting speeds and quiet operation - all in a compact and portable design. Variable speed capabilities let you easily configure the Prostar VS to the task at hand with an easy-to-use interface that allows operators to adjust the operating speed and motor performance right on the spot.

Compact and Portable Chain Motor Technology

Standard Features

Capacities: 250 to 1100 lbs. Standard Lift: 10 feet. Speeds: Up to 63 ft/min. 5:1 Design Factor. NEMA 4 Industrial-Rated Control System. Made in the USA. Lifetime Warranty. UL Approved.

Rugged & Durable

Thermally protected motor. Rugged, cast aluminum alloy frame and body feature durable epoxy powder-coat finish to protect against corrosion

Low Maintenance

Gear train lifetime lubricated with non-oxidizing grease. Enclosed frame protects the motor from environmental contamination.

Compact Design

Small, compact design makes motor ideal for use in tight spaces and allows for easy installation and maintenance.

Overload Protection

Standard overload device protects the chain motor, operator and surrounding structure from damaging overloads.

Long Chain Life

Durable CM Hoistaloy® Load Chain. 10-pocket, oblique-lay lift wheel for longer chain life.

Single- & 3-Phase Voltage Options

100 to 240 volt single phase, 50 to 60 Hz. 208 to 240 volt 3-phase. 460 volt and 575 volt 3-phase with optional transformer. 6-1/2 ft. power cord with removable molded, 3-prong, 115-volt plug.

H4 Plus Duty Cycle

With 300+ motor starts per hour and Class F motor insulation, the Prostar VS outperforms the H3 rating of its major competitors.

OPTIONAL FEATURES

Variable Controls: Choose from 2-speed, 2-step infinitely variable, 3-speed and 3-step infinitely variable controls for single and 3-phase applications.

Durable Chain Containers: Impact-resistant plastic/mesh or metal chain containers.

Swivel Hook Suspension

Latchlok® Hook & Lug Suspension: Swivel Latchlok hook suspension rotates 360¿ for easy installation and positioning. Lug-mount suspension is also available.

Product Number	Capacity (lbs)	Lift (ft)	Headroom (in)	Max Lifting Speed (ft/min)	Motor Horsepower
CPVS0250	250	10	13.41	63	0.56
CPVS0300	300	10	13.41	63	0.56
CPVS0500	500	10	13.41	39	0.56
CPVS0550	550	10	13.41	26	0.56
CPVS0600	600	10	14	31	0.56
CPVS1000	1,000	10	14	19	0.56
CPVS1100	1,100	10	14	13	0.56
