Product Description

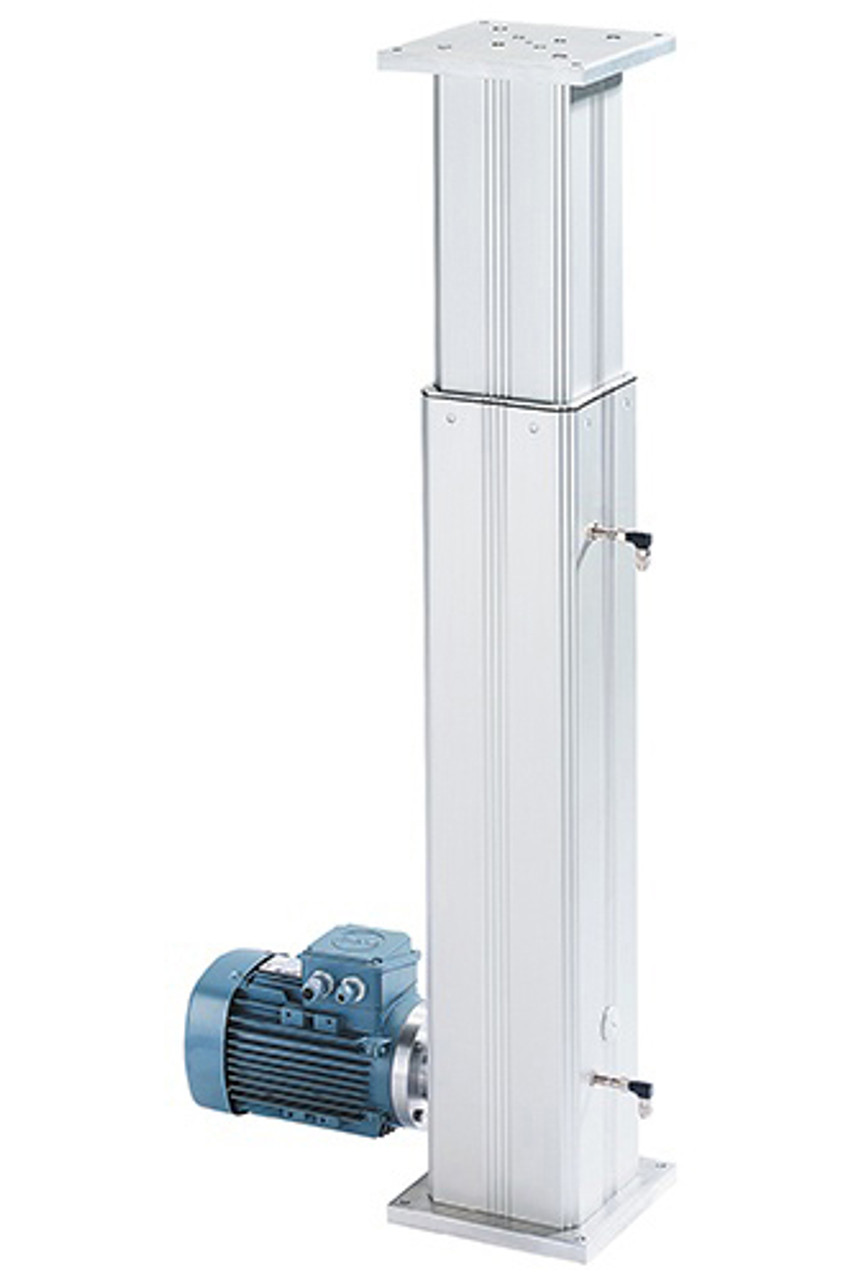

PHOENIX Telescoping Lifting Column 1100 to 5600 lbs
Lifting Columns - Up to 5620 lb. Capacity
CAPACITY: 1100 to 5600 lb (5 to 25 kN)
DESIGN: Acme screw, ball screw, or AGS screw
SPEED: up to 354 in/min (9 m/min)
TRAVEL: Up to approximately 6 ft (2m) depending on application.
TEMPERATURE RANGE: 14ºF to 104ºF (-10ºC to 40ºC); for higher temperature operation please consult our application engineers.
FEATURES & BENEFITS:
Absorbing high compressive and tensile forces up to 25 kN
Integrated linear guide
Closed and low-maintenance design
Eccentric load application permitted
Self-locking on standstill (with single-stage trapezoidal thread)*
Duty cycle of 20%/h or 15%/10 min
Short safety nut (for trapezoidal and AGS threads)
End position limit
- Inductive limit switches (single-stage lifting columns)
- Gear limit switches (multi-stage lifting columns)
OPTIONS:
Shaft encoder
Special head or foot plate
Direct attachment of IEC motors
Ball screws (single-stage columns)
Multi-start screws
Specific models also in special design with a safety nut that can be deactivated electrically
*Vibrations, sliding conditions can influence self-locking. We also recommend use of a brake motor.
