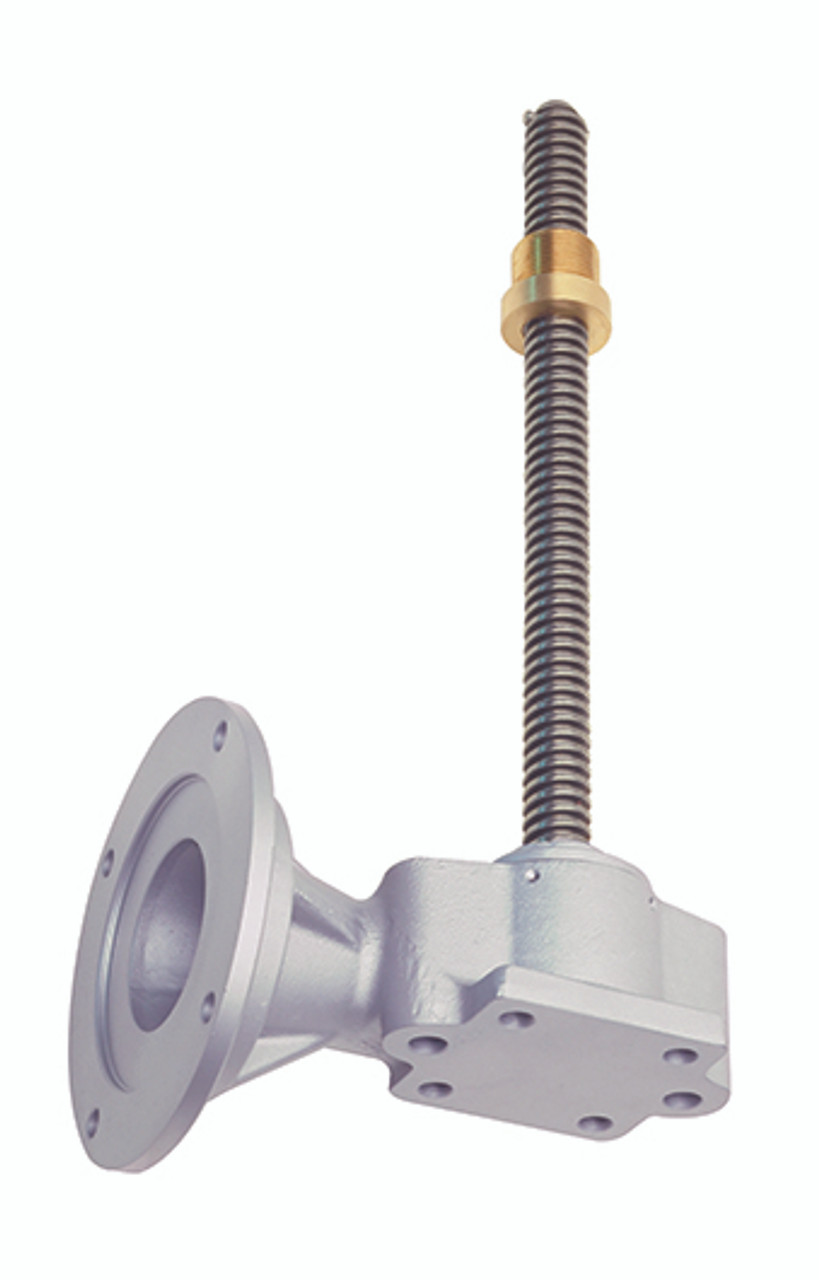

Modular Actuators - Rotating Machine Screw

Integral 56 frame, C-face mounting flange

A three-piece flexible coupling for easy motor assembly is included

Four threaded holes in base for standard hydraulic cylinder, clevis end accessory attachment. Tapped 1/2 20 UNF-2B

Rolled thread lifting screw, with work hardened finish, reduces coefficient of friction between screw and lifting nut. Provides smooth, efficient operation and long service

Steel worm and bronze gear set for quiet operation. Available in 5:1 and 20:1 ratios

Rugged lightweight aluminum housing is corrosion resistant

Bronze lifting nut for longer life

Standard grease fitting on housing for easy lubrication of worm gear

A stop-pin at the end of the lifting screw prevents inadvertent run-off of lifting nut
