Product Description

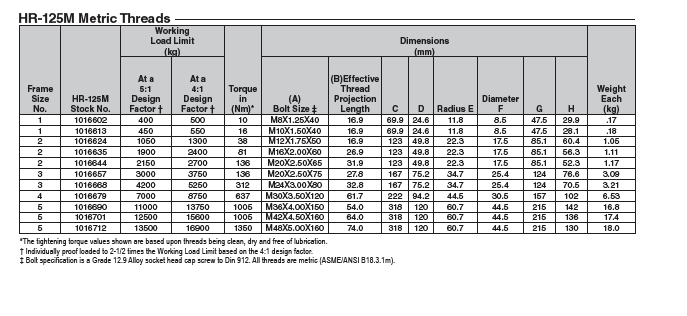

HR-125M Metric Threads
• Top washer has the following features:
• The Working Load Limit and Recommended Torque value are permanently stamped into each washer.
• Washer is color coded for easy identification: Silver - Metric thread
• Individually Proof Tested to 2-1/2 times Working Load Limit.
• Bolt specification is a Grade 12.9 Alloy socket head cap screw to Din 912. All threads listed are metric (ASME B18.3.1m).
• Designed to be used with ferrous workpiece only.
• BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
• NOTE: For Special Applications, see page 457.
• Frame 2 and larger RFID EQUIPPED.
