Product Description

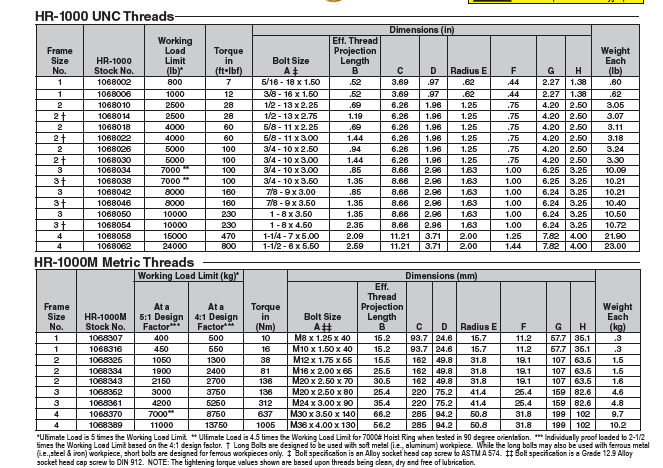

HR-1000 UNC Threads
HR-1000 UNC Threads
Forged bail provides the following:
• Easily readable “Raised Lettering” showing the name Crosby or “CG” and PIC Code for material traceability.
• Greater durability providing the increased “Toughness” desired in potentially abusive field conditions
• Larger opening than standard Hoist Ring bail.
• Top washer is color coded for easy identification (Red for UNC threads and Silver for Metric threads
• The Working Load Limit and Recommended Torque value are permanently stamped into each washer.
• Individually Proof Tested to 2-1/2 times Working Load Limit.
• Available in both UNC Thread and Metric Thread style.
• BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing below. Illustration shows
meaning of each dimension given.
• NOTE: For Special Applications, see page 457.
• Frame 2 and larger are RFID EQUIPPED.
