Product Description

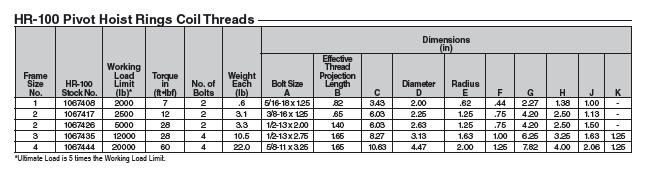

HR-100 Pivot Hoist Rings Coil Threads
• Forged bail provides the following:
• Easily readable raised lettering showing the name
Crosby or “CG” and PIC code for material traceability.
• More durability provides the increased “Toughness”
desired in potentially abusive field conditions
• Larger opening than standard Hoist Ring bails.
• 180 degree pivot action at full capacity.
• Bolts included as part of assembly.
• Design Factor of 5 to 1.
• Individually Proof Tested to 2-1/2 times Working Load Limit.
• UNC Bolt specification is a Grade 8 Alloy socket head cap
screw to ASTM A 574.
