Product Description

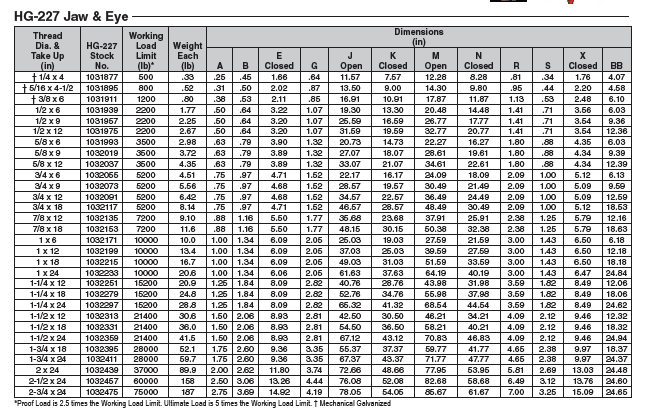

HG-227 Jaw & Eye
• End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
• Hot Dip galvanized steel.
• Turnbuckles eyes are forged and elongated, by design, to maximize easy attachment in system and
minimize stress in the eye. For turnbuckles size 1/4” through 2-1/2”, a shackle one size smaller can
be reeved through eye.
• Forged jaw ends are fitted with bolts and nuts for 1/4” through 5/8”, and pins and cotters on 3/4”
through 2-3/4” sizes.
• Modified UNJ thread on end fittings for improved fatigue properties
• Body has UNC threads.
• TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
• Lock Nuts available for all sizes (see page 198).
• Comprehensive End fitting data on pages 195 & 196
• Fatigue Rated.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductilit , design factor,
proof load and temperature requirements. Importantly, these turnbuckles meet other critical
performance requirements including fatigue life, impact properties and material traceability, not
addressed by ASME B30.26.
