Product Description

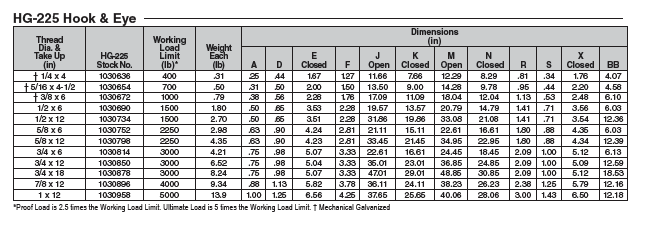

HG-225 Hook & Eye
• End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
• Hot Dip galvanized steel.
• Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize
stress in the eye. For turnbuckles sizes 1/4” through 1”, a shackle one size smaller can be reeved through
eye.
• Turnbuckle hooks are forged with a greater cross sectional area that results in a stronger hook with better
fatigue properties.
• TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
• Modified UNJ thread on end fittings for improved fatigue propertie
• Body has UNC threads.
• Lock Nuts available for all sizes (see page 198).
• Comprehensive end fitting data provided on pages 194 & 195.
• Fatigue Rated.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductilit , design factor, proof
load and temperature requirements. Importantly, these turnbuckles meet other critical performance
requirements including fatigue life, impact properties and material traceability, not addressed by ASME
B30.26.
