Product Description

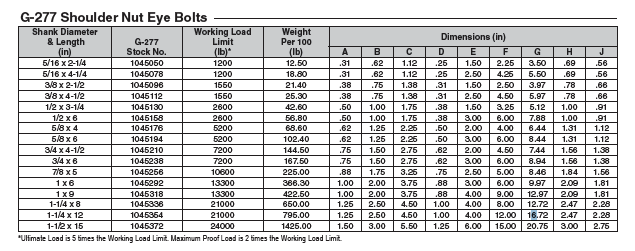

G-277 Shoulder Nut Eye Bolts
Forged Steel - Quenched and Tempered.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Working Load Limits shown are for in-line pull. For angle loading, see page 200.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductilit ,
design factor, proof load and temperature requirements. Importantly, these bolts
meet other critical performance requirements including fatigue life, impact
properties and material traceability, not addressed by ASME B30.26.
• All Bolts Hot Dip galvanized after threading (UNC).
• Furnished with standard Hot Dip galvanized, heavy hex nuts.
