Cyclone with Army Type Trolley

Overview

Product Description

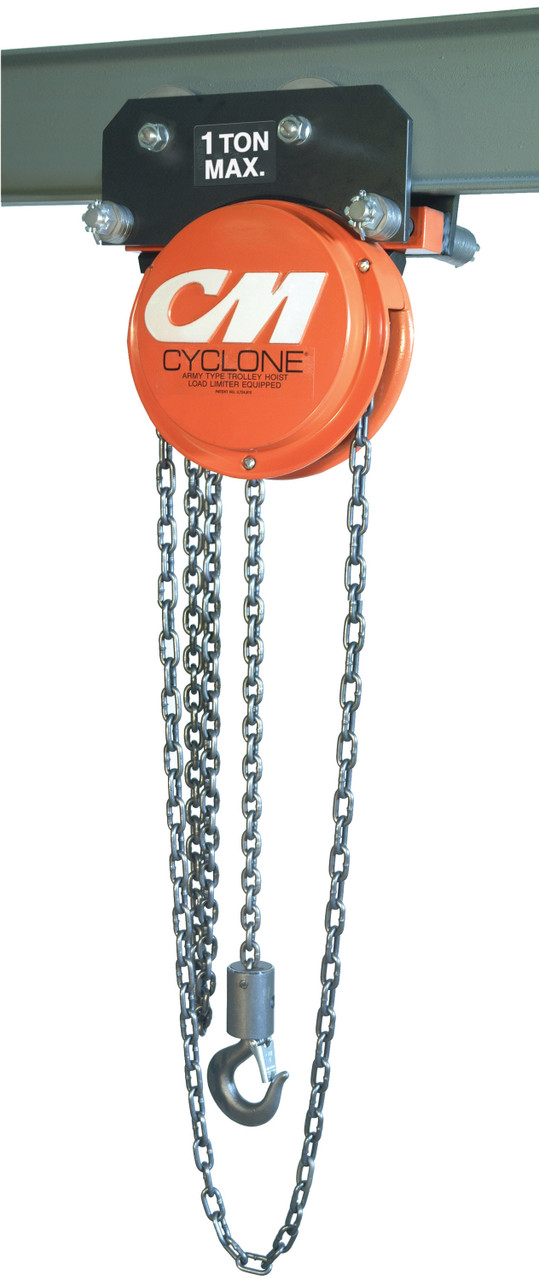

Cyclone with Army Type Trolley

The CM Cyclone Army Type Trolley Hoist combines superior engineering, efficiency and durability in a compact, low headroom trolley mount ideal for applications requiring movable hoists.

Interchangeable parts & easy maintenance

The Cyclone boasts the most interchangeability of chain fall parts in the industry.

Strength and Durability

High-strength aluminum alloy castings in the frame and covers with a rugged hoist alloy chain add strength and durability.

Inspected over 75 times

To meet or exceed HMI and ASME/ANSI performance and safety standards

Smooth, efficient, easier lifting

High-efficiency spur gearing allows for greater lift with minimum effort. Fully machined, forged liftwheel pockets allow for easier lifting and smooth free chaining.

Positive load control

An enclosed contoured Weston-type automatic brake allows for precise and accurate load control.

ADDITIONAL INFORMATION

Made in the U.S.A
Lifetime Warranty
Metric Rated

Product Number	Capacity (lbs)	Lift (ft)	Reeving	Headroom (in)
C4541	551	10	1	11.81
C4542	1,102	10	1	11.81
C4778	551	10	1	11.81
C4779	1,102	10	1	11.81
C4806	551	10	1	11.81
C4808	1,102	10	1	11.81
C4544	2,205	10	1	11.81
C4780	2,205	10	1	11.81
C4814	2,205	10	1	11.81
C4545	3,307	10	1	15.31
C4546	4,409	10	1	15.31
C4781	3,307	10	1	15.31
C4782	4,409	10	1	15.31
C4815	3,307	10	1	15.31
C4816	4,409	10	1	15.31
C4547	6,614	10	2	18.88
C4783	6,614	10	2	18.88
C4817	6,614	10	2	18.88
C4548	8,818	10	2	18.88
C4784	8,818	10	2	18.88
C4818	8,818	10	2	18.88
C4549	11,023	10	3	23.5
C4785	11,023	10	3	23.5
C4819	11,023	10	3	23.5
C4550	13,228	10	3	24
C4786	13,228	10	3	24
C4820	13,228	10	3	24
C4551	17,637	10	4	28.25
C4787	17,637	10	4	28.25
C4821	17,637	10	4	28.25
C4552	22,046	10	5	28.25
C4788	22,046	10	5	28.25
C4822	22,046	10	5	28.25
C4553	26,455	10	6	30.38
C4789	26,455	10	6	30.38
C4823	26,455	10	6	30.38
C4521	551	10	1	11.75
C4522	1,102	10	1	11.75
C4766	551	10	1	11.75
C4767	1,102	10	1	11.75
C4790	551	10	1	11.75
C4791	1,102	10	1	11.75
C4524	2,205	10	1	11.75
C4768	2,205	10	1	11.75
C4792	2,205	10	1	11.75
C4525	3,307	10	1	15.31
C4526	4,409	10	1	15.31
C4769	3,307	10	1	15.31
C4770	4,409	10	1	15.31
C4793	3,307	10	1	15.31
C4794	4,409	10	1	15.31
C4527	6,614	10	2	18.88
C4771	6,614	10	2	18.88
C4795	6,614	10	2	18.88
C4528	8,818	10	2	18.88
C4772	8,818	10	2	18.88
C4796	8,818	10	2	18.88
C4529	11,023	10	3	23.5
C4773	11,023	10	3	23.5
C4797	11,023	10	3	23.5
C4530	13,228	10	3	24
C4774	13,228	10	3	24
C4798	13,228	10	3	24
C4531	17,637	10	4	28.25
C4775	17,637	10	4	28.25
C4799	17,637	10	4	28.25
C4532	22,046	10	5	28.25
C4776	22,046	10	5	28.25
C4800	22,046	10	5	28.25
C4533	26,455	10	6	30.38
C4777	26,455	10	6	30.38
C4805	26,455	10	6	30.38
