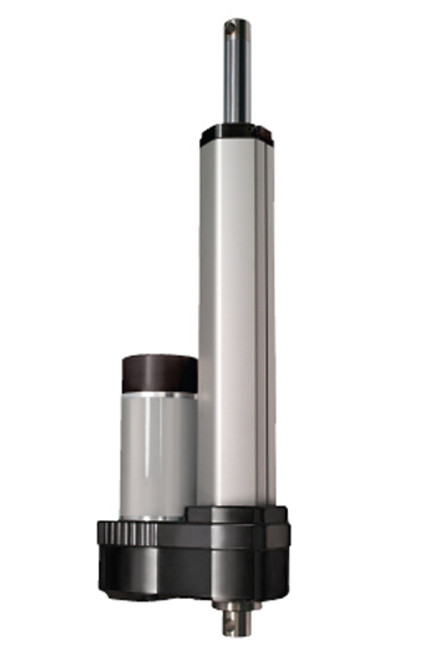

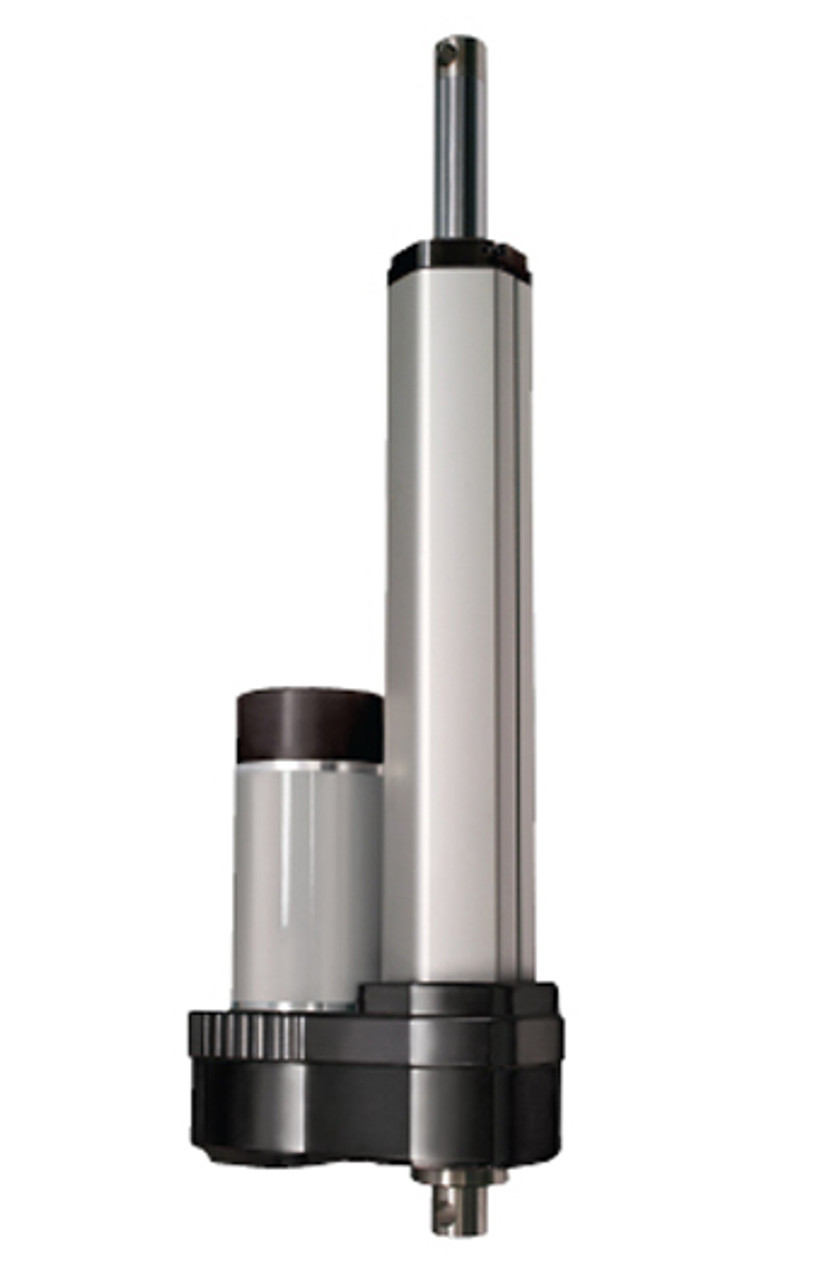

CMLA B Series - 1,000 lbs

CMLA B Series - 1,000 lbs

Overview

Product Description

CMLA B Series - 1,000 lbs

Linear Actuators - 25 to 2,000 lb.

SCREW TYPE: Ball screw or trapezoidal screw
TEMPERATURE RANGE: -4ºF to 150ºF (-20ºC to 65ºC)
ENVIRONMENTAL RATING: IP66S protection standard

CMLA B Series 1000 lb Product Specifications
Capacitor Model	Motor	Max. Dynamic Load	Max. Static Load	Screw	Gear	Motor Power	Amperage	Lifting Speed	Duty Cycle	Capacitor Rating
#	Type	(lbs) N	(lbs) N	Type	Ratio	Volts	Amps	(in/s) mm/s	(in/hr) m/hr	mdf
SK6405-7-15	AC	(1000) 4500	(1500) 6672	Trapezoid	14.2	115	7	(0.56) 14.2	(360) 9.1	50
192002120	AC	(1000) 4500	(1500) 6672	Trapezoid	14.2	230	3.4	(0.56) 14.2	(360) 9.1	12.5
SK6405-7-15	AC	(1000) 4500	(1500) 6672	Ball	8.1	115	7	(1.12) 28.5	(600) 15.2	50
192002120	AC	(1000) 4500	(1500) 6672	Ball	8.1	230	3.4	(1.12) 28.5	(600) 15.2	12.5
SK6405-7-15	AC	(250)§ 1112	(1500) 6672	Ball	2.1	115	7	(4.3) 109.2	(2300) 58.5	50
192002120	AC	(250)§ 1112	(1500) 6672	Ball	2.1	230	3.4	(4.3) 109.2	(2300) 58.5	12.5
§Quad Speed - Lower ratio reduces rated load to 250 lbs. No clutch Notes: 1. The correct capacitor mfd should be used for each model or the cylinder will not perform as rated. 2. Order Hard Start Kit 192036494 for applications where high starting torque is required (low temperature, high starting load)
