Product Description

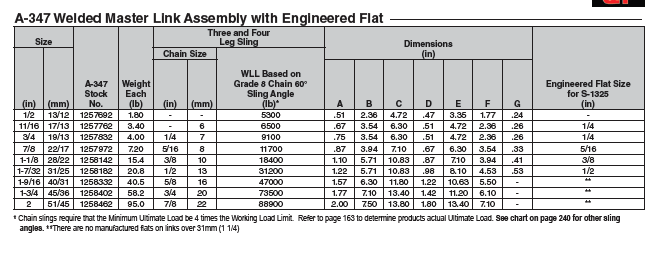

A-347 Welded Master Link Assembly
• Alloy Steel — Quenched and Tempered.
• Individually Proof Tested to values shown, with certification
• Proof Tested with 70% inside width special fixtures sized to prevent
localized point loading per EN 1677-4, reference page 276.
• Forgings have a Product Identification Code (PIC) for material
traceability, along with the size, the name Crosby or "CG".
• 347 master links are type approved to DNV Certification
Notes 2.7-1- Offshore Containers. These Crosby master links are
100% proof tested and impact tested.The tests are conducted by
Crosby and 3.1 test certification is available upon request.
• Engineered Flat for use with S-1325A coupler link.
• Meets or exceeds all requirements of ASME B30.26 including
identification, ductility, design factor, proof load and temperature
requirements. Importantly, these links meet other critical
performance requirements including fatigue life, impact properties
and material traceability, not addressed by ASME B30.26
