Product Description

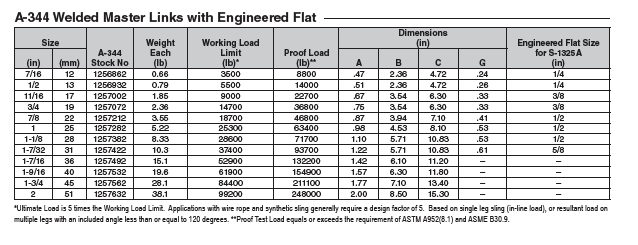

A-344 Welded Master Links with Engineered Flat
• Alloy Steel - Quenched and Tempered.
• Individually Proof Tested to values shown, with certification
• Proof Tested with 60% inside width special fixtures sized to prevent
localized point leading per ASME A-952 , reference page 276.
• Each link has a Product Identification Code (PIC) for material
traceability, along with the size and the name Crosby® or “CG”.
• Large inside width and length to allow additional room for sling
hardware and crane hook.
• Engineered Flat for use with S-1325A coupler link.
• Meets or exceeds all requirements of ASME B30.26 including
identification, ductility, design factor, proof load and temperature
requirements. Importantly, these links meet other critical performance
requirements including fatigue life, impact properties and material
traceability, not addressed by ASME B30.26.
• Master links are type approved to DNV Certification Notes 2.7-1- Offshore
Containers. These Crosby master links are 100% proof tested, MPI and
impact tested. The tests are conducted by Crosby and 3.1 test certification
is available upon request. Refer to page 164 for Crosby COLD TUFF®
master links that meet the additional requirements of DNV rules for
certification of lifting appliances - Loose Gea .
• 7/16” through 1-7/32” have Engineered Flat.
