Product Description

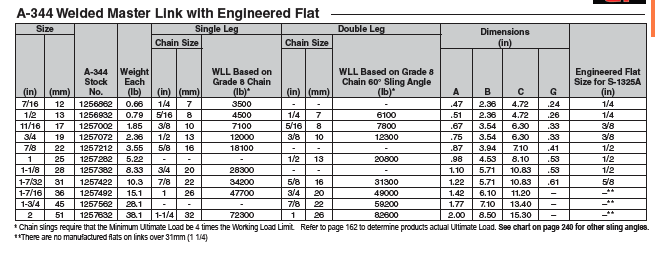

A-344 Welded Master Link with Engineered Flat
• Alloy Steel - Quenched and Tempered.
• Individually Proof Tested to values shown, with certification
• Proof Tested with 70% inside width special fixtures sized to prevent
localized point loading per EN 1677-4, reference page 276.
• Each link has a Product Identification Code (PIC) for material
traceability, along with the size and the name Crosby® or “CG”.
• Large inside width and length to allow additional room for sling
hardware and crane hook.
• Engineered Flat for use with S-1325A coupler link.
• Meets or exceeds all requirements of ASME B30.26 including
identification, ductility, design factor, proof load and temperature
requirements. Importantly, these links meet other critical
performance requirements including fatigue life, impact properties
and material traceability, not addressed by ASME B30.26.
• Master links are type approved to DNV Certification Notes 2.7-1-
Offshore Containers. These Crosby master links are 100% proof
tested and impact tested. The tests are conducted by Crosby and
3.1 test certification is available upon request.
• 7/16” through 1-7/32” have Engineered Flat.
