Product Description

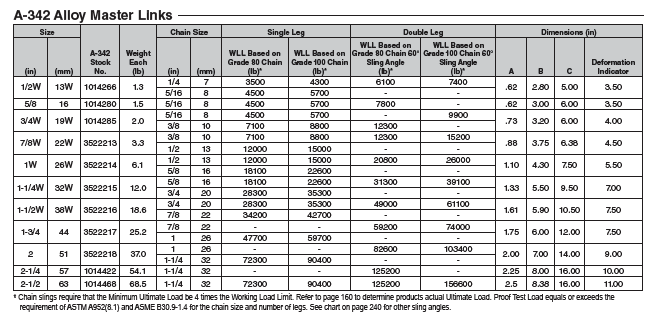

A-342 Alloy Master Links Crosby
• Alloy Steel – Quenched and Tempered.
• Proof Tested with special fixtures sized to prevent localized point loading. ee
pages 160 and 276 for proof test values and fixtures
• Crosby 7/8” to 2” 342 master links are type approved to DNV GL-ST-E271-2.7-1
Offshore Containers. These Crosby master links are 100% proof tested, MPI
and impact tested. The tests are conducted by Crosby and 3.1 test certification
is available upon request. Refer to page 164 for Crosby COLD TUFF® master
links that meet the additional requirements of DNV rules for certification of lifting
appliances - Loose Gear.
• Meets or exceeds all requirements of ASME B30.26 including identification,
ductility, design factor, proof load and temperature requirements. Importantly,
these links meet other critical performance requirements including fatigue life,
impact properties and material traceability, not addressed by ASME B30.26.
• Forgings have a Product Identification Code (PIC) for material traceabilit , along
with the size, the name Crosby and USA in raised lettering.
• Selected sizes designated with “W” in the size column have enlarged inside
dimensions to allow additional room for sling hardware and crane hook.
• Incorporates patented QUIC-CHECK® deformation indicators
